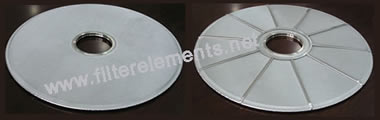

Leaf Filters




Media:
The materials of leaf disc filter element are metal fiber sintered felt, multi-layer sintered wire cloth, metal sintered woven mesh.
Advantage:

  • Strength and durability;
  • Wide filtration range and high flow rates;
  • Adjustable filtration range;
  • Reusable

Application:

  • filtration of polymer.
  • production of film.
  • purification of petroleum chemistry

Specification:

  • Based on woven mesh and porous plate
  • Material:
       1. filtration layers:sus316L;
       2. protective layer: sus316L, sus304
  • Filtering rate: 3-80μm
  • Porosity: 70-85%
  • Pressure balance: 120kg/cm2
  • Filtration direction: inside to outside

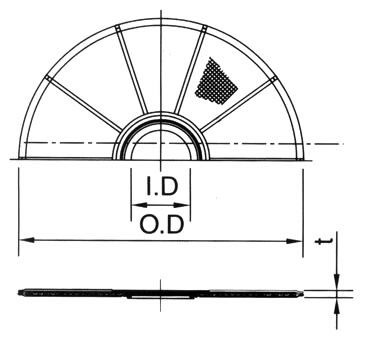

TYPE

I.D(mm)

O.D(mm)

R(μm)

t

LF-

MAX72.5

MAX304.8

2-100

6.5~10.5
