Type C Sintered Wire Mesh

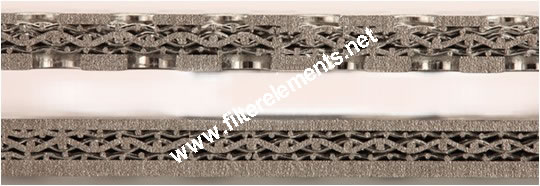

The Structural Drawing of Type C Sintered Wire Mesh

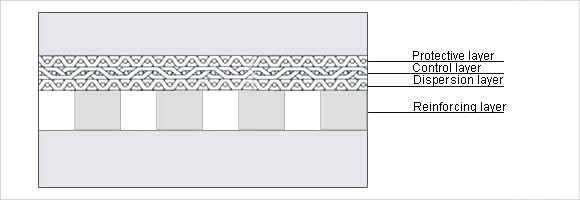

Type C Sintered Wire Mesh Cross Section Structure

Summary:
It is sintered by punching plate and multi-layer stainless steel wire mesh. Due to the support of punching plate, it has the higher compressive and mechanical strength. It is mainly used in food, beverage, water treatment, dust removing, pharmaceutical, polymer, etc. It can be processed into various filters: tube, disc and sheet. The thickness of the punching plate and the structure of the wire mesh can be customized according to the user’s requirements.
Material:
The material of the punching plate is SUS304(AISI 304), and that of the wire mesh is SUS316( AISI316) or SUS316L(AISI316L).
Size:
The standard sizes are 500x1000 mm and 600x1200 mm, and any size within the above range can be customized according to the customer’s requirement.
Table of Technical Parameters:

Model

Filter Rating( u )

Structure

Thickness(mm)

Weight(kg/㎡)

Porosity(%)

C4-2.0T

2—200

30+Filter layer+30+ф4×5р×1.0T

2.0

6.7

57

C4-2.5T

2—200

30+Filter layer+30+ф5×7р×1.5T

2.5

9.8

50

C5-3.0T

2—200

60+Filter layer+60++20+ф6×8р×2.0T

3.0

11.8

50

C5-3.5T

2—200

20+Filter layer+20+10+ф8×10р×2.0T

3.5

12.6

54

C5-4.0T

2—200

20+Filter layer+20+10+ф8×10р×2.5T

4.0

14.2

55

C5-4.3T

5—200

20+Filter layer+20+10+ф10×13р×3.0T

4.3

16.9

50

C5-5.3T

5—200

20+Filter layer+20+10+ф10×13р×4.0T

5.3

20.6

51


Note:
1. We can choose the filter layer by the customer’s needs within the filter rating.
2. Other special structures can be made to the customer’s need.
3. The porosity is based on 20u filter layer.
