Cylindrical Filter Elements


  • Products Introduction
  • Technical Data
  • Structure Specifications

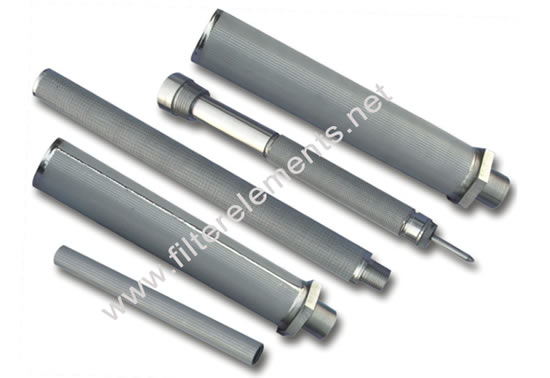

Cylindrical Filter Elements are made with Five-Layer Sintered Wire Cloth, with filter rating ranging from 0.5 micron to 200 micron. Cylindrical Filter Elements mainly serve in filtration of polyester, oil products, chemicals and pharmaceutics, also used in filtration of pure water and gas.

Five-Layer Sintered Wire Cloth consists of five layers of stainless steel wire mesh, which are sintered together in vacuum. Cylindrical Filter Elements made of Five-Layer Sintered Wire Cloth as filter medium, boast of fine micron filtering, good permeability, high strength, easy to clean, good corrosion resistance, durable at work and no immigration of materials.





Major Technical Data of Sintered Wire Mesh



Nominal
rating (μm)

Control layer

Absolute
rating
98% (μm)

Porosity
(%)

Resistance coeffient

Bubble point pressure
(mmH
2O)

Tensile
strength (kgf/mm2)

Thickness
(mm)

Weight
(kg/m2)

2

325x2400

8-9

5-LAYERS
38

6-LAYERS
48

14x105

280-640


5-LAYERS
12

6-LAYERS
7


5-LAYERS
1.7

6-LAYERS
3.5


5-LAYERS
8.4

6-LAYERS
14.4

5

200x1400

12-14

12x105

250-600

10

165x1400

16-18

7x105

220-550

20

165x800

28-32

4x105

180-450

40

50x250

58-63

4x105

150-400

75

200



2x105

70-130

100

150



2x105

60-110

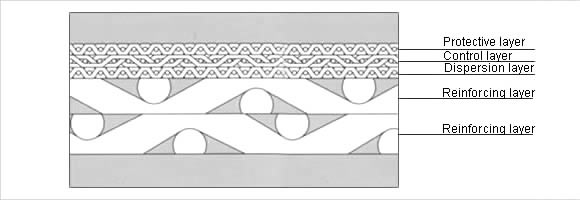

The Structural Drawing:

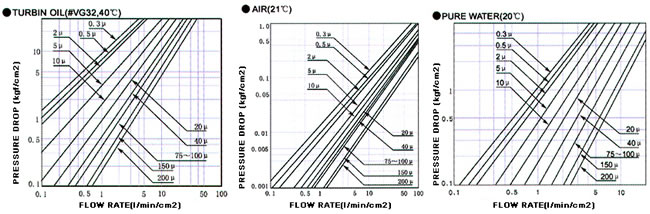

Curve of pressure drop-Flow rate:


Specifications :

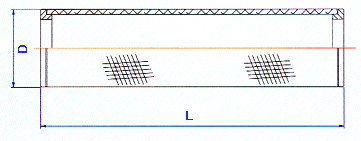

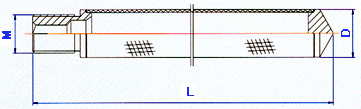

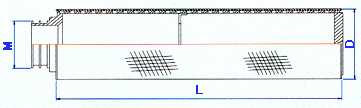

Filter Elements Model: CF-D/L-R
CF -Cylindrical Filter Elements
D - Diameter
L - Length
R - Filter Rating



Model L
(mm)
D
(mm)
M Filter Area R
(μm)
Filter Media
CF-14/65-R 65 14 M10x1P
M14x1P
M14x1.5P
1/4"NPT
0.002M2 2, 5, 10, 15, 20, 30, 40, 75

Stainless steel sintered fiber felt, Stainless steel wire cloth

CF-14/250-R 250 0.01M2
CF-14/500-R 500 0.022M2
CF-14/1000-R 1000 0.044M2




Model L
(mm)
D
(mm)
M Filter Area R(μm) Filter Media
CF-25/250-R 250 25 M20x1.5P 0.019M2 2, 5, 10, 15, 20, 30, 40, 75

Stainless steel sintered fiber felt, Stainless steel wire cloth

CF-25/500-R 500 0.039M2
CF-25/1000-R 1000 0.078M2
CF-30/500-R 500 30 M20x2P
M20x2.5P
M28x2P
0.046M2
CF-30/1000-R 1000 0.093M2
CF-30/1500-R 1500 0.140M2





Model L
(mm)
D
(mm)
M Filter Area R(μm) Filter Media
CF-50/250-R 250 50 Sealing ring or flange 0.038M2 2, 5, 10, 15, 20, 30, 40, 75

Stainless steel sintered fiber felt, Stainless steel wire cloth

CF-50/500-R 500 0.078M2
CF-50/1000-R 1000 0.150M2
CF-60/500-R 500 60 0.094M2
CF-70/500-R 500 70 0.108M2
CF-75/500-R 500 75 0.115M2
CF-90/500-R 500 90 0.140M2
CF-150/500-R 500 150 0.230M2
Note: Inner support of filter elements can be stainless steel perforated tube or spring.




Model L
(mm)
D
(mm)
M Filter Area R(μm) Filter Media
CF-16/390-R 390 16 M16x1.5P
M33x1.5P
M33x2P
M55x2P
0.02M2 2, 3, 5, 7, 10, 15, 20, 25, 30, 40, 60, 75

Stainless steel sintered fiber felt, Stainless steel wire cloth, Stainless steel sintered wire mesh

CF-50/500-R 500 50 0.07M2
CF-63/750-R 750 63 0.15M2
CF-65/266-R 266 65 0.05M2
CF-70/500-R 500 70 0.10M2
CF-70/1000-R 1000 70 0.21M2


The products of special specifications can be manufactured according to customer's requirements.
