Type D Sintered Wire Mesh




Dutch Wire Mesh

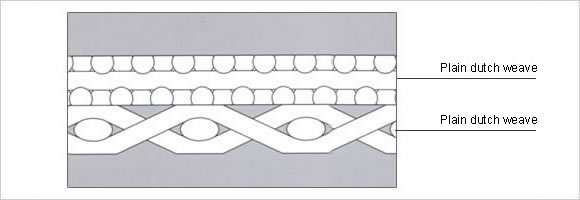

The Structural Drawing of Type D Sintered Wire Mesh

Summary:
Type D sintered laminate is overlapped and stacked up by 2 or 3 layers of plain dutch woven wire mesh with equal hole size, after vacuum sintering, pressurizing and rolling. It has the average pore size and steady air permeability. This kind of material can be widely used in powder transport, laboratory fluid bed, driers and coolers.
Material:
The standard material is SUS316L (AISI316L)
Size:
The standard sizes are 500x1000 mm and 600x1200 mm, and special size in range can be finished as requirement.





Application of Type D Sintered Wire Mesh
