Type A Sintered Wire Mesh

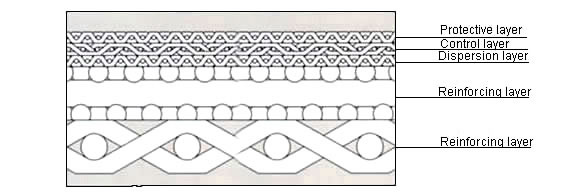

The Structural Drawing of Type A Sintered Wire Mesh

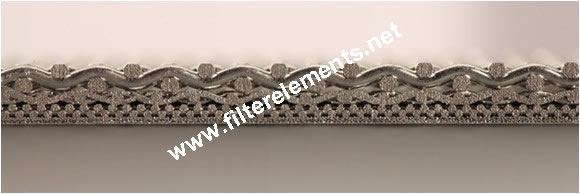

Type A Sintered Wire Mesh Cross Section Structure

Summary:
This is a standard combination of 5-layer sintered wire mesh which has the widest application. Five different layers of stainless steel wire mesh are combined, and then sintered together through vacuum sintering, compressing, and rolling, forming a porous product
Characteristics:
·Wide range of filter rating
It has the steady filter rating from the 1 micron to 100 micron.
·Steady filter rating
Due to the two protective layers, the mesh of the filter layer is not easy to deform.
·High mechanical strength
Owing to the support of fourth and fifth layers, it has higher resistance to pressure and mechanical strength.
·Easy to wash
It is very easy to wash, especially to reverse wash, by virtue of adopting the surface layer filtration material
·Heat resistance
It can resist the heat up to the 480° C.
·Corrosion resistance
It has the property of anti-corrosion as a result of adopting the material of SUS316L.
·Tractability
It suits for many kinds of machining, such as cutting, bending, punching, stretching, welding and so on.
Material:
The standard material is SUS316L(AISI316L).
Dimension:
The standard dimensions are 500x1000mm and 600x1200mm, and other dimensions in between are also available.

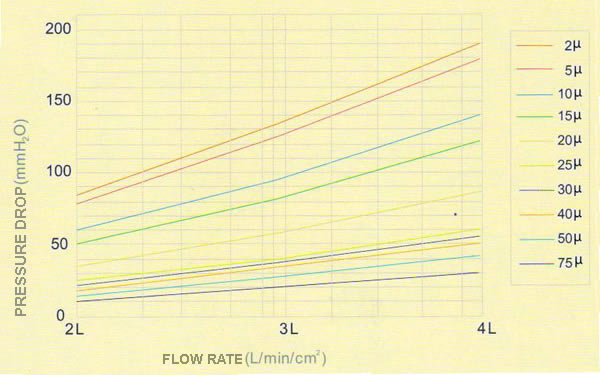

Curve of Air Flow Rate:




Technical Data:

Model

Nominal Filter Rating
( u)

Structure

Thickness
(mm)

Air

Permeability

(L/min/cm2)

Bubble Pressure (mm H2O)

Weight
(㎏/㎡)

Porosity
(%)

A5-1

1

100+400×2800+100+12×64+64×12

1.7

1.81

360-600





5-layer sintered wire mesh(8.4)



6-layer sintered wire mesh
(14.4)













37%

A5-2

2

100+325×2300+100+12×64+64×12

1.7

2.35

300-590

A5-5

5

100+200×1400+100+12×64+64×12

1.7

2.42

260-550

A5-10

10

100+165×1400+100+12×64+64×12

1.7

3.00

220-500

A5-15

15

100+165×1200+100+12×64+64×12

1.7

3.41

200-480

A5-20

20

100+165×800+100+12×64+64×12

1.7

4.50

170-450

A5-25

25

100+165×600+100+12×64+64×12

1.7

6.12

150-410

A5-30

30

100+450+100+12×64+64×12

1.7

6.7

120-390

A5-40

40

100+325+100+12×64+64×12

1.7

6.86

100-350

A5-50

50

100+250+100+12×64+64×12

1.7

8.41

90-300

A5-75

75

100+200+100+12×64+64×12

1.7

8.7

80-250

A5-100

100

100+150+100+12×64+64×12

1.7

9.1

70-190

Note: The 6-layer sintered wire mesh is to add one layer of 12 mesh to the 5-layer sintered wire mesh. Its thickness is 3.5 mm.And it has the higher anti-pressure ability.
