Type B Sintered Wire Mesh








The Structural Drawing of Type B Sintered Wire Mesh

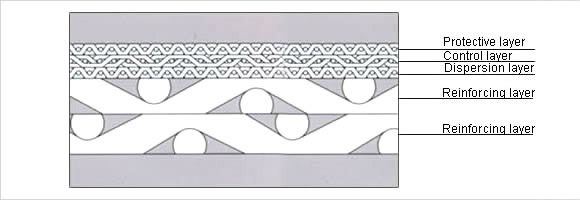

Type B Sintered Wire Mesh Cross Section Structure

Summary:
This type of mesh is sintered together by many layers of plain-woven square mesh. Owing to the large opening ratio, the sintered mesh possesses good permeability, small resistance but large flow. It is mainly applied to filter kinds of air and liquid. It can be made according to the customer’s request because every layer of mesh is alternative.
Material:
The standard materials are SUS316(AISI316) & SUS316L(AISI316L).
Size:

The standard sizes are 500x1000 mm and 600x1200 mm. Any size within the above range could be made according to the customer’s request.
Table of Technical Parameters:

Model

          Structure

Filter rating (u)

Thickness(mm)

Weight(㎏/㎡)

Porosity(%)

B2-0.5T

Filter layer+60

2—100

0.5

1.6

60

B3-0.7T

60+Filter layer+60

2—100

0.7

2.4

56

B3-1.0T

50+Filter layer+20

20—200

1.0

3.3

58

B3-2.0T

Filter layer+20+8.5

20—250

2.0

6.5

58

B4-1.0T

60+Filter layer+40+20

2—200

1.0

4.4

44

B4-1.7T

40+Filter layer+20+16

2—200

1.7

6.2

54

B5-1.9T

30+Filter layer+60+20+16

2—200

1.9

5.3

52

B5-2.5T

80+Filter layer+30+10+8.5

2—200

2.5

8.8

55

B7-2.0T

50+Filter layer+40+20+40+Filter layer+50

2—150

2.0

7.4

58


Note:
1. The filtration layer is decided by the customer as long as the Filter rating is within our specified range.
2. We can also make the mesh with other special structures requested by the customer.
3. The porosity takes that of 20 mesh as criteria.
